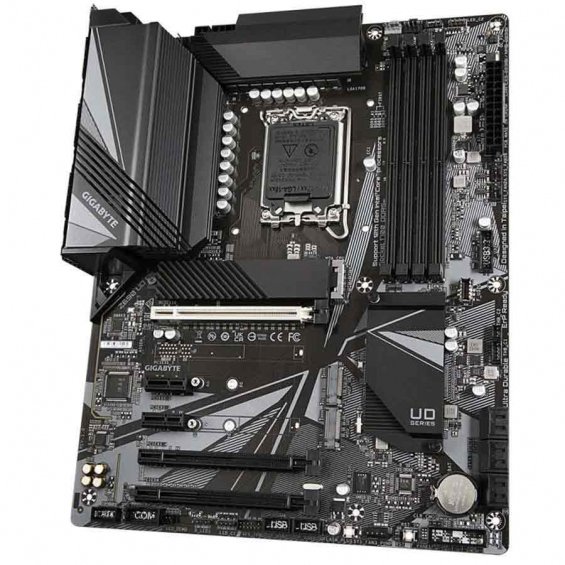

Placa Gigabyte Z690 UD

    Fabricante:  Gigabyte    P/N:  Z690 UD    EAN:  4719331827922    Código:  60907
272,13 €
(Impuesto incl.)
Admite procesadores de la serie Intel® Core ™ de 12.a generaciónDDR4 sin búfer no ECC de doble canal, 4 DIMMDiseño VRM digital directo 16 + 1 + 2 con etapa de potencia de 60 A * y condensador de polímero de tantalioDisipadores de calor VRM de ultra rendimientoLAN rápida de 2,5 GbE con gestión de ancho de banda3 x NVMe PCIe 4.0 x4 M.2 ultrarrápidos con protectores térmicos ampliadosSuperSpeed USB 3.2 Gen 2x2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb / sRGB FUSION 2.0, compatible con tiras de LED direccionables y LED RGBSmart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOPQ-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

  • CPU
    • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
    • L3 cache varies with CPU
    • (Please refer to "CPU Support List" for more information.)
  • Chipset
    • Intel® Z690 Express Chipset
  • Memory
    • Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
    • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • * Support for HDMI 2.0 version and HDCP 2.3.
    • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • * Support for DisplayPort 1.2 version and HDCP 2.3
    • (Graphics specifications may vary depending on CPU support.)
  • Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    • Support for S/PDIF Out
  • LAN
    • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    • (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
    • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    • 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
    • 2 x PCI Express x1 slots
    • (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    • CPU:
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    • Chipset:
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    • 6 x SATA 6Gb/s connectors
    • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    • Intel® Optane™ Memory Ready
    • * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
  • USB
    • Chipset:
    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Chipset+2 USB 2.0 Hubs:
    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x 4-pin ATX 12V power connector
    • 1 x CPU fan header
    • 1 x water cooling CPU fan header
    • 3 x system fan headers
    • 1 x system fan/water cooling pump header
    • 2 x addressable LED strip headers
    • 2 x RGB LED strip headers
    • 3 x M.2 Socket 3 connectors
    • 6 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x S/PDIF Out header
    • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x serial port header
    • 2 x Thunderbolt™ add-in card connectors
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x reset button
    • 1 x reset jumper
    • 1 x Q-Flash Plus button
    • 1 x Clear CMOS jumper
    • ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    • 1 x PS/2 keyboard/mouse port
    • 1 x DisplayPort
    • 1 x HDMI port
    • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    • 1 x USB 3.2 Gen 2 Type-A port (red)
    • 4 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for APP Center
    • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • @BIOS
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • RGB Fusion
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash Plus
    • Support for Q-Flash
    • Support for Xpress Install
  • Bundled Software
    • Norton® Internet Security (OEM version)
    • Realtek® Gaming LAN Bandwidth Control Utility
  • Operating System
    • Support for Windows 10 64-bit
  • Form Factor
    • ATX Form Factor; 30.5cm x 24.4cm
-/-
