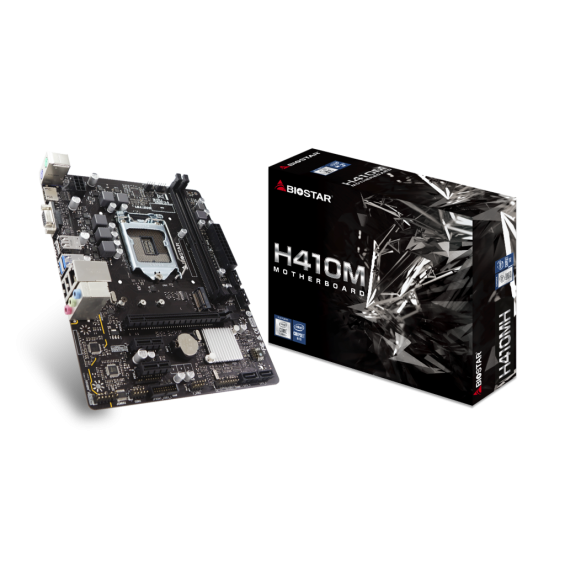

Placa Biostar H410MH
- Fabricante: Biostar P/N: H410MH EAN: 4712960682412 Código: 56013
57, 54 €
(Impuesto incl.) (Sin impuesto 47,55 €) Supports 10th Generation Intel Core™ Processor Intel H410 single chip architecture Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933 up to 64 GB Memory max capacity Supports PCIe M.2 (10Gb/s) Supports HDMI 4K resolution Supports GbE LAN
| Chipset | Intel H410 |
| CPU SUPPORT | Socket 1200 for 10th Gen Intel Core™, Pentium and Celeron processors * 10th Generation Intel Core™ Processor Family only support 400-Series * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933 2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module * Please refer to Memory Support List for more information. Core (i9/i7) support DDR4 up to 2933 MHz; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666 MHz. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 2.0 x 2 (10Gb/s) -NVMe/ AHCI SSD and SATA III (6Gb/s) SSD * When using NVMe/AHCI PCIe SSD module on M.2(PCIe-M2_1)slot, all of SATA connectors will be enabled. * When using SATA SSD module on M.2(PCIe-M2_1)slot, the SATA_1 connector will be disabled. |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 7.1 Channels, High Definition Audio |
| USB | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) |
| EXPANSION SLOT | 2 x PCIe 3.0 x 1 Slots 1 x PCIe 3.0 x 16 Slot |
| REAR I/O | 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 17.9cm x 22.6cm ( W x L ) |
| OS SUPPORT | Supports Windows 10 (64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Supports 100% Solid capacitor |
-/-
