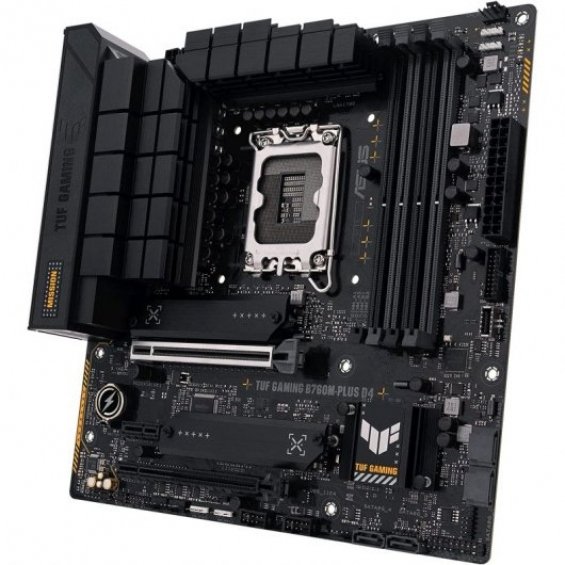

Placa Asus TUF Gaming B760M-Plus D4
- Fabricante: Asus P/N: 90MB1DI0-M0EAY0 EAN: 4711387005316 Código: 66212
163,23 €
(Impuesto incl.) La placa base ASUS TUF GAMING B760M PLUS D4 diseñada para procesadores híbridos Intel Core de 12ª y 13ª generación es ideal para montar un sistema potente y versátil. Las placas base ASUS Prime están diseñadas y fabricadas para usuarios exigentes que buscan un rendimiento constante y fiabilidad a largo plazo. Aprovechan al máximo sus componentes con un diseño único hecho de materiales robustos y utilidades exclusivas. Incorporan funciones profesionales y combinan las ventajas de los nuevos procesadores Intel con el diseño y las características icónicas de ASUS.
- CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset
- Intel® B760 Chipset
- Memory
- 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
- Graphics
- 1 x DisplayPort**
- 1 x HDMI® port***
- *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- ***Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots
- Intel® 13th & 12th Gen Processors
- 1 x PCIe 5.0 x16 slot
- Intel® B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
- - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
- USB
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports *
- * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Rear optical S/PDIF out port
- - Premium audio capacitors
- - Dedicated audio PCB layers
- Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ (USB4®) header
- Special Features
- ASUS TUF PROTECTION
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - TUF LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - CPU Socket lever protector
- - ProCool
- - Pre-mounted I/O shield
- - SafeDIMM
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 2+
- - Power Saving
- - Two-Way AI Noise Cancelation
- AI Suite 3
- DIGI+ VRM
- - PC Cleaner
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton 360 for Gamers
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x TUF Gaming sticker
- Documentation
- 1 x TUF Certification card
- 1 x User guide
- Operating System
- Windows® 11, Windows® 10 64-bit
- Form Factor
- mATX Form Factor
- 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
-/-
