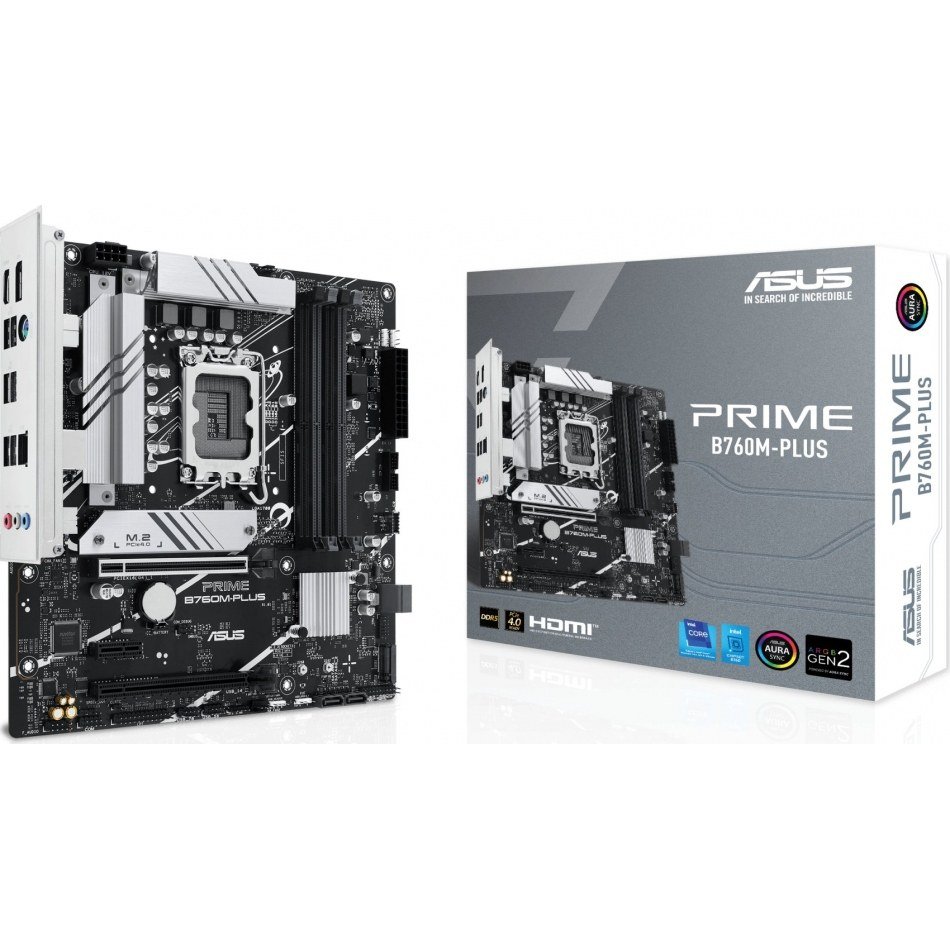

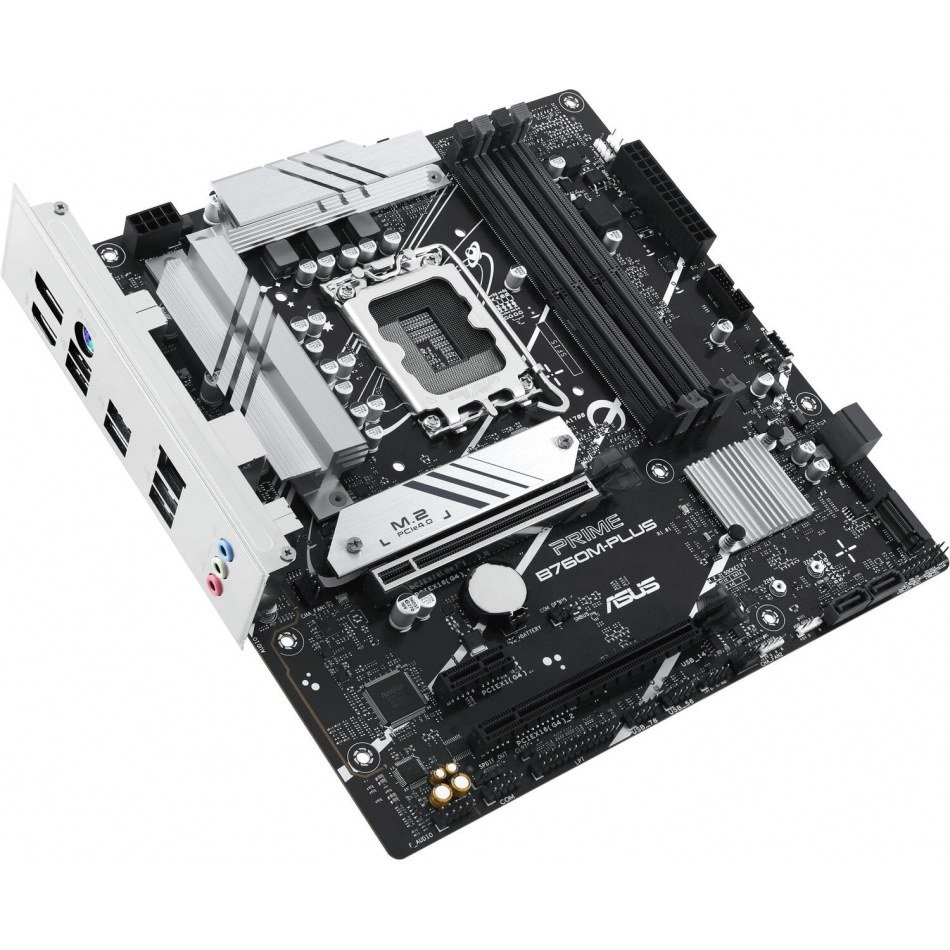

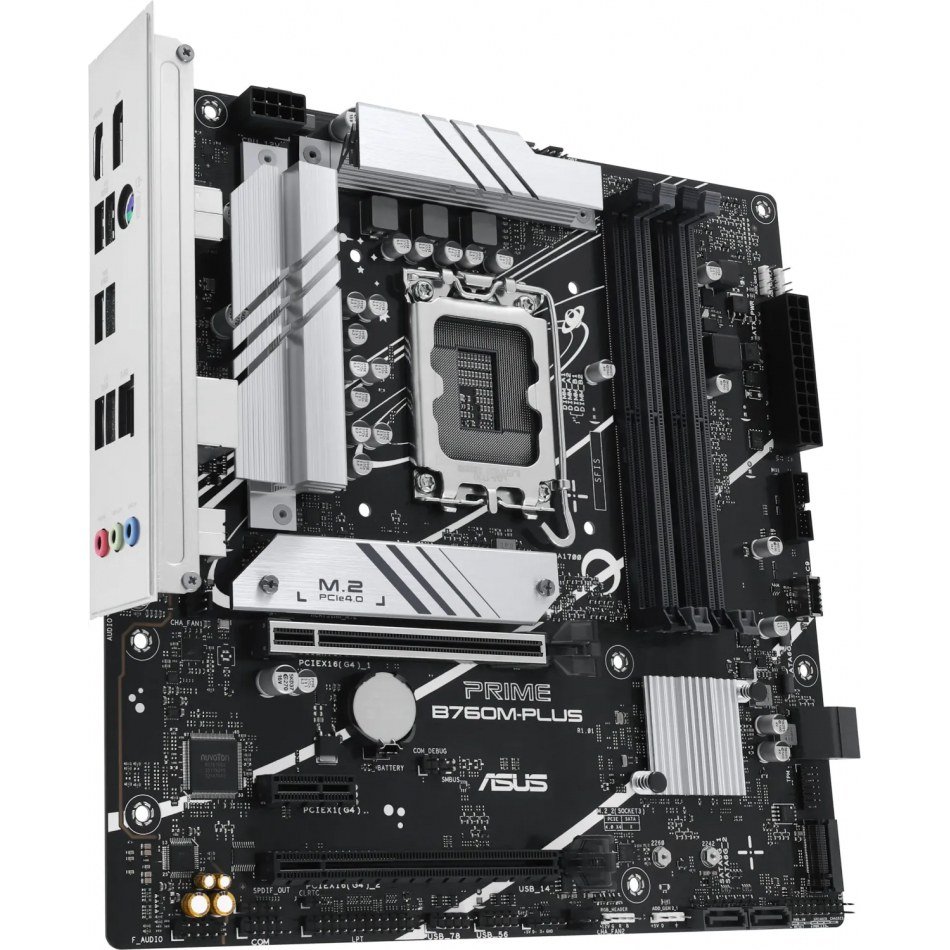

ASUS PRIME B760M-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core? i3, Intel® Core? i5, Intel® Core?..., LGA 1700, DDR5-SDRAM, 192 GB
- CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset
- Intel® B760 Chipset
- Memory
- 4 x DIMM slots, max. 192GB, DDR5
- 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS Enhanced Memory Profile II (AEMP II)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- 4 x DIMM slots, max. 192GB, DDR5
- 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS Enhanced Memory Profile II (AEMP II)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Graphics
- 1 x DisplayPort**
- 1 x HDMI™ port***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- 1 x DisplayPort**
- 1 x HDMI™ port***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots
- Intel® CoreTM Processors (14th & 13th & 12th Gen)*
- 1 x PCIe 4.0 x16 slot
- Intel® B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
- - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® CoreTM Processors (14th & 13th & 12th Gen)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Ethernet
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard
- USB
- Rear USB (Total 6 ports)
- 2 x USB 10Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 8 ports)
- 1 x USB 5Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 5 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A
- Rear USB (Total 6 ports)
- 2 x USB 10Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 8 ports)
- 1 x USB 5Gbps connector ((supports USB Type-C®)
- 1 x USB 5Gbps headers support 2 additional USB 5Gbps ports
- 3 x USB 2.0 header support 5 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback"
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

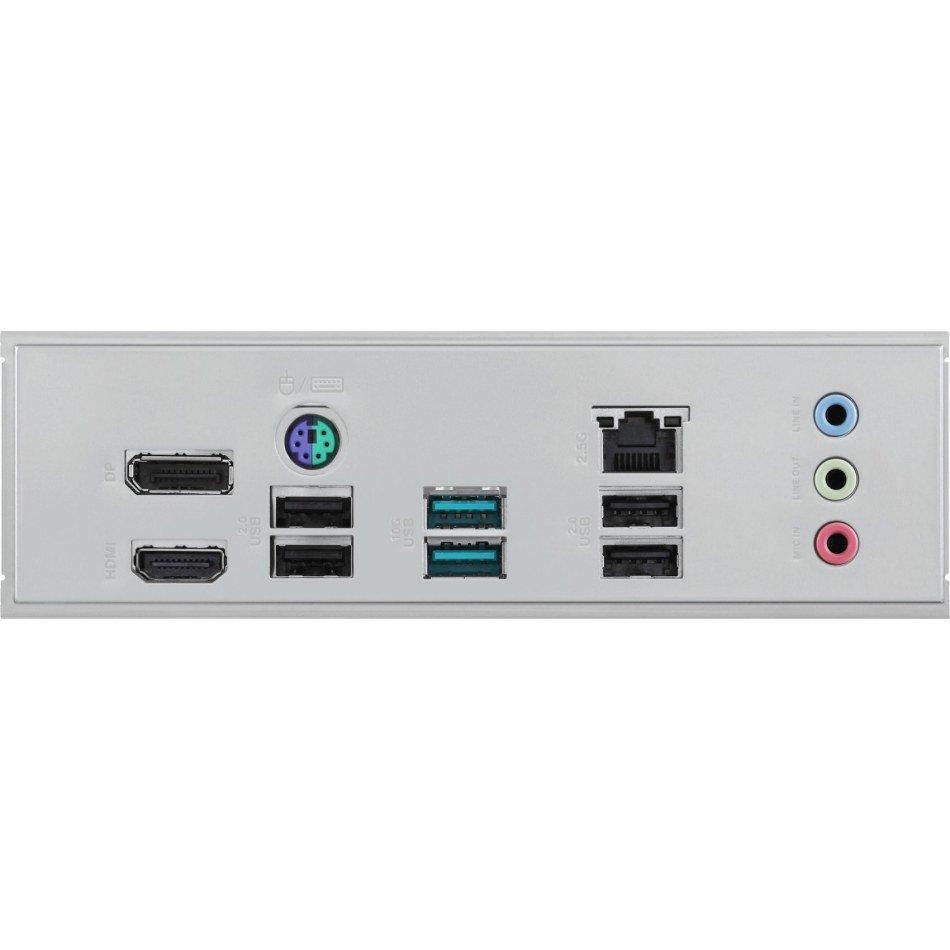

- Back Panel I/O Ports
- 2 x USB 10Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 5 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front panel audio header (F_AUDIO)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 header support 5 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front panel audio header (F_AUDIO)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - LANGuard
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 2+
- - Power Saving
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Digi+ VRM
- - PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- AASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 2+
- - Power Saving
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Digi+ VRM
- - PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x Quick start guide
- Operating System
- Windows® 11, Windows® 10 64-bit
- Form Factor
- micro-ATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core™ de 14.ª y 13.ª generación. Con un diseño de energía robusto, soluciones de refrigeración integrales y opciones de ajuste inteligentes, PRIME B760M-PLUS ofrece a los usuarios y constructores de PC una gama de optimizaciones de rendimiento a través de funciones intuitivas de software y firmware.
Características:
- Zócalo Intel® LGA 1700 : listo para procesadores Intel® de 14.ª, 13.ª y 12.ª generación
- Conectividad ultrarrápida : PCIe 4.0, dos ranuras M.2, Realtek 2,5 Gb Ethernet, USB trasero de 10 Gbps, USB frontal de 5 Gbps Type-C®
- Refrigeración integral : disipadores VRM, disipador M.2, disipador PCH, cabezales de ventilador híbridos y Fan Xpert 2+
- Tecnología de memoria exclusiva : ASUS Enhanced Memory Profile II y ASUS OptiMem II
- Iluminación RGB Aura Sync : encabezados direccionables Gen 2 integrados y encabezado Aura RGB para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync
- Cancelación de ruido AI bidireccional : reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
-/-
